A Power Rack with Cable Machine brings the flexibility of cable training to a home gym without taking up space like a separate station. Add a cable machine to a power rack, and you can bring in rows, pulldowns, presses, and curls while keeping your rack available for barbell exercises.
But which setup makes sense for your rack and the way you train? Pulley attachments, weight-stack systems, and compact cable trainers each have different strengths. In this guide, we’ll explain how they work, what to check before mounting one, and how to set up a system that fits your space and training.
What does a cable machine add to a Power Rack?
A rack supports barbell exercises and adjustable safety bars. A cable system adds resistance that travels through a pulley to a handle or strap. A power rack cable machine combines both, letting you pull against resistance from different heights and angles. Depending on its design, it may include one or more pulleys, a cable, a weight stack or plate-loading pin, and a point to attach handles or a rope.
That opens up exercises that are harder to perform with a barbell alone. Common setups include a high pulley for lat pulldowns and triceps pushdowns, a low pulley for rows and curls, or two adjustable pulleys for cable flyes and single-arm exercises.
A cable unit can also make a rack more useful in a compact room. Instead of adding a standalone machine, you use part of the frame you already own. But a rack attachment isn’t automatically compatible with every rack, and you still need enough room to move and load safely.
Choosing the right power rack with cable machine for your training
Choosing the right power rack cable machine starts with your training. If you mainly want to add rows, curls, or triceps pushdowns, a simple pulley may be enough. If you want more exercise options, a larger attachment could suit you better, as long as you have the space and it fits your rack.
Think about which movements you want to do, how much room you have, and how the attachment connects to your rack. The comparison below shows what each type offers and what to check before buying.
|
Option |
Best for |
Space and setup |
Check before buying |
|
Plate-loaded pulley attachment |
Rows, pulldowns, curls and basic cable exercises |
Compact; uses plates and a loading pin |
Rack compatibility, pulley ratio, cable length and plate loading |
|
Rack-integrated weight stack |
Regular high- and low-pulley training with quick weight changes |
More permanent; takes up more space and requires assembly |
Rack model, stack capacity, cable path and clearance |
|
Portable digital cable trainer |
Varied cable exercises and adjustable digital resistance |
Compact device; needs a secure mount and room to move |
Mounting method, rack fit, power and operating instructions |
This comparison is a starting point, not a specification sheet. These power rack attachments make your power rack more versatile.
Attachment names and designs vary between manufacturers. For example, a plate-loaded rack pulley may use existing weight plates, while a digital trainer creates resistance electronically. One is not automatically better than the other. Choose the best option based on your training, available space, and budget.
Check rack compatibility before you buy
A cable machine attachment for a power rack must fit the rack and suit the way you plan to train. Some mounts are designed for a particular hole pattern or rack series. A mount that looks close in size may still sit loosely, block a safety pin, or misalign the cable.
Start by checking the manufacturer’s compatibility list. Then compare the manual’s measurements with the rack manual and the attachment’s specifications.
Pay particular attention to:
- Upright dimensions: For example, a rack upright measuring 3 × 3 inches is about 76 × 76 mm. That is close to, but not the same as, a 75 × 75 mm upright. Even a small difference can affect whether an attachment fits, so check the rack and attachment measurements before buying.
- Hole diameter and spacing: Pins and bolts need to fit the rack’s holes and sit securely.
- Mounting position: Check that the attachment can sit at the height required for your exercises.
- Load limits: Confirm the rated capacity of the attachment and any relevant rack components.
- Clearance: Make sure the cable, plates, and your body have room to move without hitting a wall, ceiling, or other equipment.
Do not assume that two racks are compatible because they look similar. Some manufacturers also specify a particular hole size or series for possible power rack attachments.
Make sure the attachment locks fully, the pins are seated, and the cable does not rub against sharp edges. Also keep the rack’s safety bars in place for barbell lifts. The cable hardware doesn't replace them.
How to mount a cable machine to a Power Rack
When setting up a power rack with cable machine for home, gym, or on-the-go use, follow the attachment’s manual and use the supplied hardware. These general steps can help you plan the installation:
1. Clear the area. Remove plates and other attachments from the rack. Leave space where the cable will move.
2. Check the parts and instructions. Make sure the hardware is complete and the manual matches your attachment model.
3. Fit the attachment at the recommended height. Use the specified holes and pins or bolts. Use alternative hardware only if the manufacturer confirms it is suitable.
4. Secure every connection. Tighten fasteners as directed. Check that the attachment cannot shift or rotate.
5. Test the cable path without a heavy load. Move the handle through its range. Check that the cable does not snag, rub, or hit the rack.
6. Add resistance gradually. Start with a light load and controlled repetitions. Stop if the attachment moves or the cable does not run smoothly.
If the rack instructions call for anchoring or a particular floor surface, follow them. Do not attach exercise equipment to drywall alone; the mounting surface and hardware must be designed to handle the forces involved.
Exercises you can do with a Power Rack cable machine
A cable machine adds pulling exercises to your rack, and the handle or rope you attach can change how each movement feels. It’s a good idea to start with light resistance, especially if you’re new to cable exercises. Try each movement slowly so you can get used to the cable and keep control from start to finish. Once the movement feels comfortable, you can gradually increase the resistance. Here are a few exercises to try.
- Seated rows: Set the pulley low, sit facing the rack, and pull the handle towards your waist. Keep your back steady and pull your elbows back.
- Lat pulldowns: Attach a bar or rope to a high pulley. Pull it down towards your upper chest, then return it slowly. Avoid leaning far back or pulling behind your neck.
- Triceps pushdowns: Stand facing a high pulley with a rope or straight handle. Keep your elbows close to your sides as you press the handle down.
- Biceps curls: Set the pulley low and hold the handle with your palms facing up. Keep your elbows near your sides as you bend your arms.
- Face pulls: Set the pulley around face height and attach a rope. Pull it towards your face with your elbows out, then return with control.
Some Power Rack attachments let you adjust pulley height, making it easier to set up these different movements. Before purchasing a cable machine attachment for power rack use, check that it fits your rack and can reach the heights your exercises need.
Upgrade your rack with Gym Nano

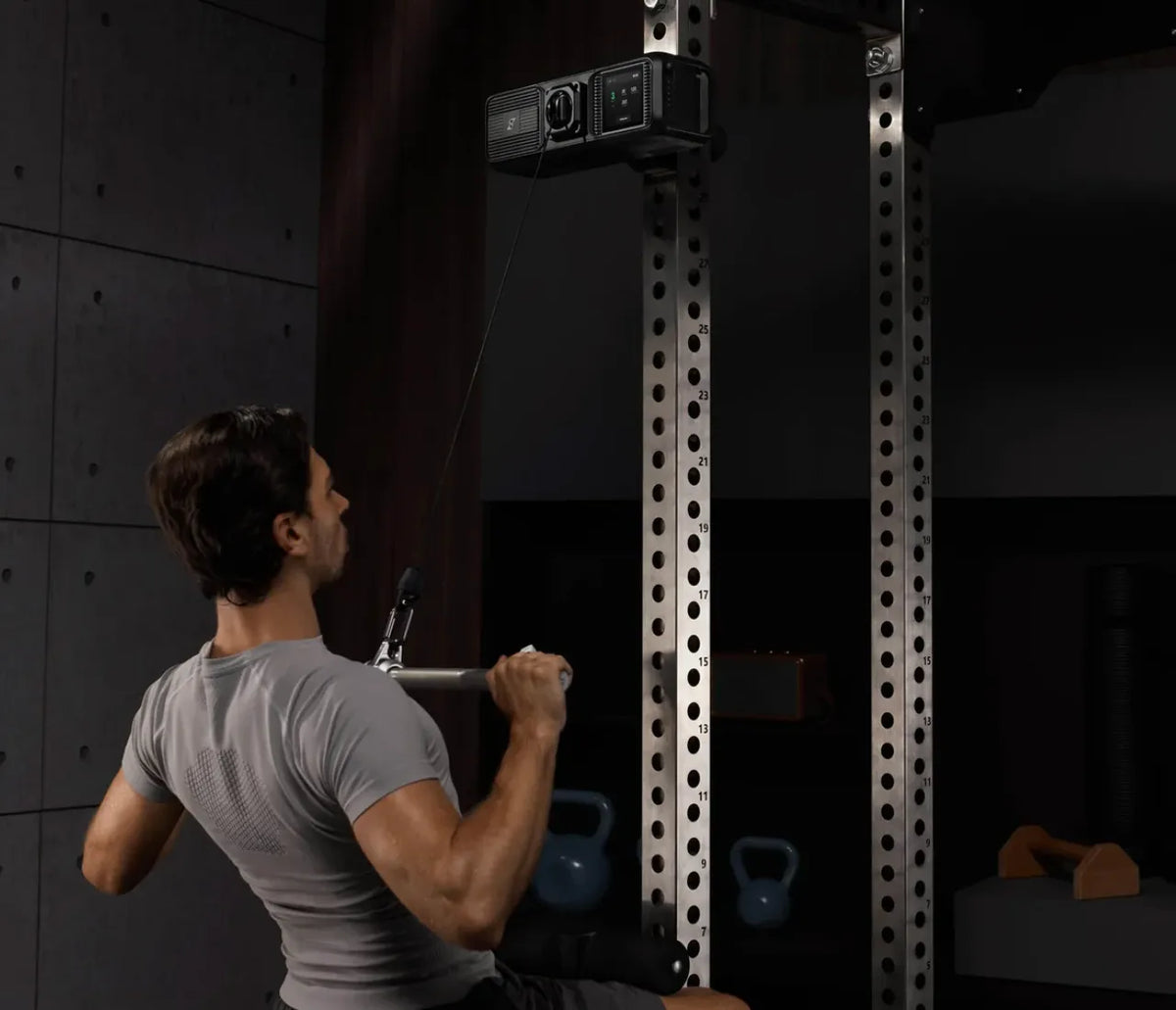

If you want a cable setup without a conventional weight stack, the Speediance Gym Nano is a compact digital cable trainer designed to mount to a rack. It offers 100 kg of digital resistance, a 5.1 m cable, and weighs 8.2 kg. The device has five training modes, including standard, eccentric, and fixed-speed.
The included accessory guide explains the differences between the mounts. The knob-lock rack mount holds the unit in a fixed position; the larger sliding rack mount slides along the rack. Packages also vary in included handles and straps, so compare what each bundle includes with the exercises you plan to do.
This may suit a home gym with limited space or for users who want adjustable digital resistance and a movable mounting position. Choose this device if you want to add portable, electronically adjustable cable exercises to an existing rack and value quick resistance changes or multiple training modes. Before ordering the Gym Nano, confirm the mount fits your rack and that the setup provides enough clearance for your intended movements.
FAQs
Can I add a cable machine to any Power Rack?
No. Rack attachments use different upright sizes, hole diameters, and mounting patterns. Check the rack and attachment specifications, and confirm compatibility with the manufacturer if anything is unclear.
Can I use cable attachments for leg training?
Yes. With the right setup, you can add a cable machine to a power rack and use it for leg exercises. Attach an ankle strap for kickbacks or hip abductions, or use a belt for supported squat variations if your machine allows them. Check your equipment’s instructions and start with light resistance.
Is a digital cable trainer better than a plate-loaded pulley?
Both have their own advantages. A plate-loaded pulley uses weight plates to adjust resistance. A digital trainer, such as the Gym Nano, offers convenient resistance adjustments and different training modes. The right option depends on your preferred training style and the features you want in your home gym.
How do I maintain the cable system?
Follow the manufacturer’s maintenance instructions. Before each session, inspect the cable for wear and check that the pulley and mounting points move or sit as intended. Stop using the system if a cable is damaged or a connection feels loose.
Is a cable machine for Power Rack worth it?
It can be a practical upgrade if you already own a compatible rack and want to add cable exercises without making room for a separate machine. A simple pulley may be enough for a few basic movements, while an adjustable attachment offers more options. Before buying, check that it fits your rack, stays within its load limits, and leaves enough room to train.
